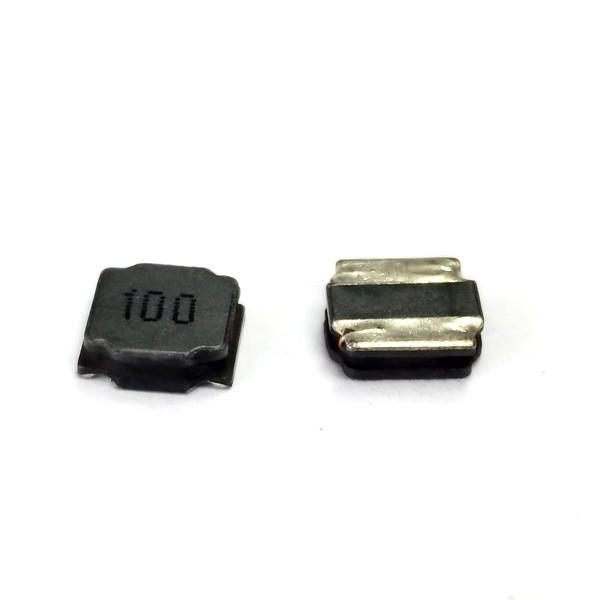

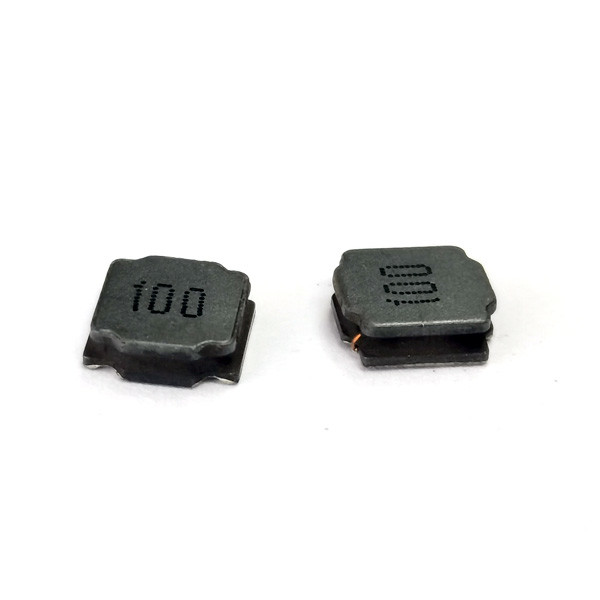

Customized Shielded Wire Wound Miniaturized Power Chip Inductors 0.8A To 3.8A
1.Product Description
Miniaturized Power Chip Inductor is an inductive component designed to meet the demand for miniaturization and high power density in modern electronic equipment. It adopts chip structure, which is convenient for surface mount technology (SMT) installation on printed circuit boards (PCB), and is widely used in power management and signal processing circuits of all kinds of electronic devices.
| Item | Value |
| Model Number | Power inductor |
| Place of Origin | China |
| Application | Audio,netcom and other electronics |
| Brand | ZXY |
| Supplier Type | Original factory |
| Tolerance | 20% |
| Operating Temperature | -40℃~+125℃ |
| Rated Power | 100KHz |
| TYPE | A | B | C | D | E | F | G | H | Fig |
| ZXY-NR6020 | 6.0±0.3 | 6.0±0.3 | 2.1 Max | 2.3±0.3 | 1.85±0.3 | 2.4 | 1.8 | 5.7 | 2 |
2.Applications
1.LED lighting;
2.multi-function mobile phones;
3.flat-panel TV;
4.Blu-ray DVD;
5.Set-top boxes;
6.Notebook computers, desktop computers, servers, graphics cards;
7.Portable, personal navigation systems, multimedia equipment.
3. Characteristics
1. Surface mount high power inductor.
2. It has the characteristics of miniaturization, high quality, high energy storage and low resistance.
3. Mainly used in computer display boards, notebook computers, pulse memory programming, and DC-DC converters.
4. Reel packaging is available for automatic surface mounting.
| Advantage | Explanation in Application |
| Space - saving | - In modern electronic devices, space is at a premium. Miniaturized Power Chip Inductors are designed to be extremely compact, allowing for more components to be integrated onto a single printed circuit board (PCB). For example, in smartphones, where the internal space is highly constrained, these inductors enable the addition of new features without increasing the device's size. Their small footprint also contributes to the development of thinner and more portable electronic products, such as ultra - thin laptops and wearable devices. |
| High - density Integration | - Facilitates high - density integration on PCBs. Their small size allows for closer placement of components, which can improve the overall performance of the circuit by reducing signal path lengths. In complex systems like high - end gaming consoles, this enables more efficient use of the limited PCB space, leading to better thermal management and electrical performance. The ability to pack more components in a small area also reduces the need for larger and more complex PCBs, lowering production costs. |
| Low Profile | - The low - profile design of Miniaturized Power Chip Inductors is especially beneficial for applications where height is a critical factor. In tablets and some slim - line audio equipment, the low - height inductors can be easily incorporated into the design without adding excessive thickness. This is crucial for maintaining the sleek and compact appearance of modern consumer electronics while still providing the necessary power - handling capabilities. |
| High - Efficiency Power Handling | - Despite their small size, these inductors are capable of handling high power efficiently. They can store and transfer large amounts of energy, making them suitable for power - intensive applications. For instance, in the power supply units of high - performance CPUs and GPUs, Miniaturized Power Chip Inductors can provide stable power delivery, ensuring that these components operate at their peak performance. Their high - efficiency power conversion also helps to reduce power losses and heat generation, improving the overall energy efficiency of the system. |
| Compatibility with Miniaturized Components | - Designed to be compatible with other miniaturized components in the modern electronics ecosystem. They can work in harmony with small - sized capacitors, resistors, and integrated circuits, enabling the creation of highly integrated and compact electronic modules. In Internet - of - Things (IoT) devices, where every component needs to be small and power - efficient, the compatibility of Miniaturized Power Chip Inductors with other mini - components allows for the development of tiny, yet powerful, sensor nodes and communication modules. |
| Fast Response Time | - Miniaturized Power Chip Inductors often have a fast response time, which is essential for applications that require rapid changes in power. In switching power supplies, they can quickly adapt to changes in load, ensuring stable output voltage. This fast response helps to improve the transient performance of the circuit, reducing voltage spikes and dips. In applications like LED lighting drivers, where the current needs to be precisely controlled to achieve smooth dimming, the fast - response characteristic of these inductors is crucial for maintaining high - quality lighting performance. |
