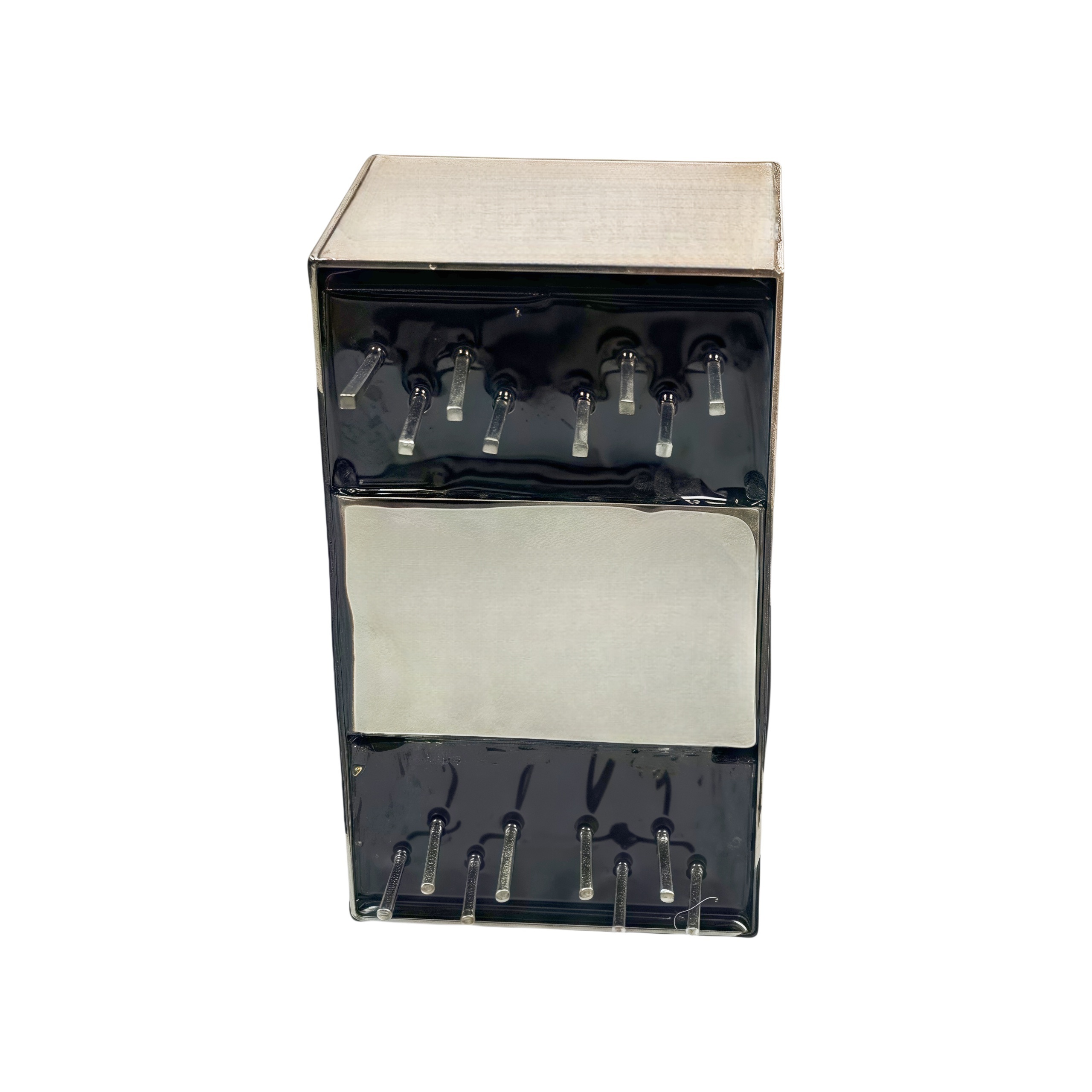

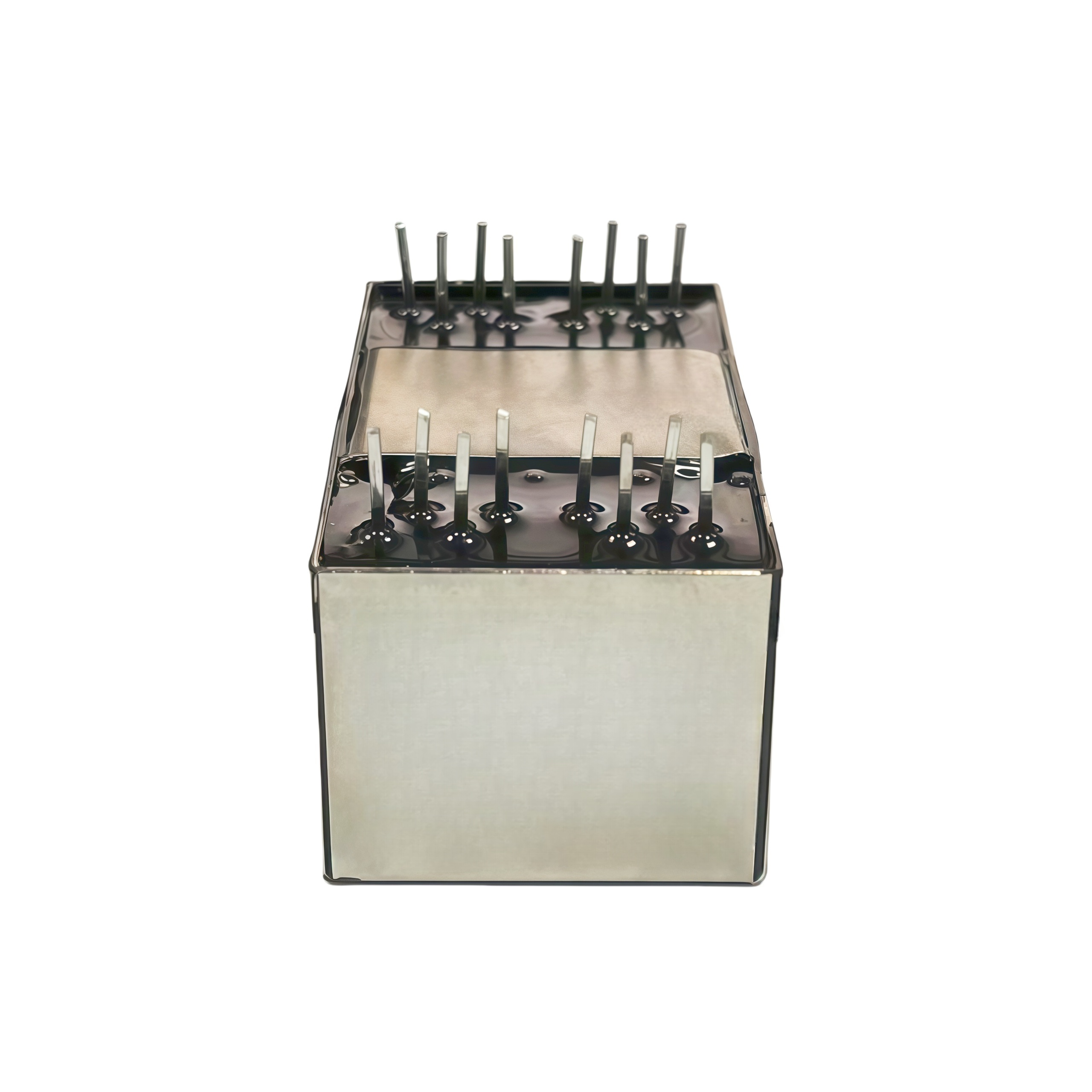

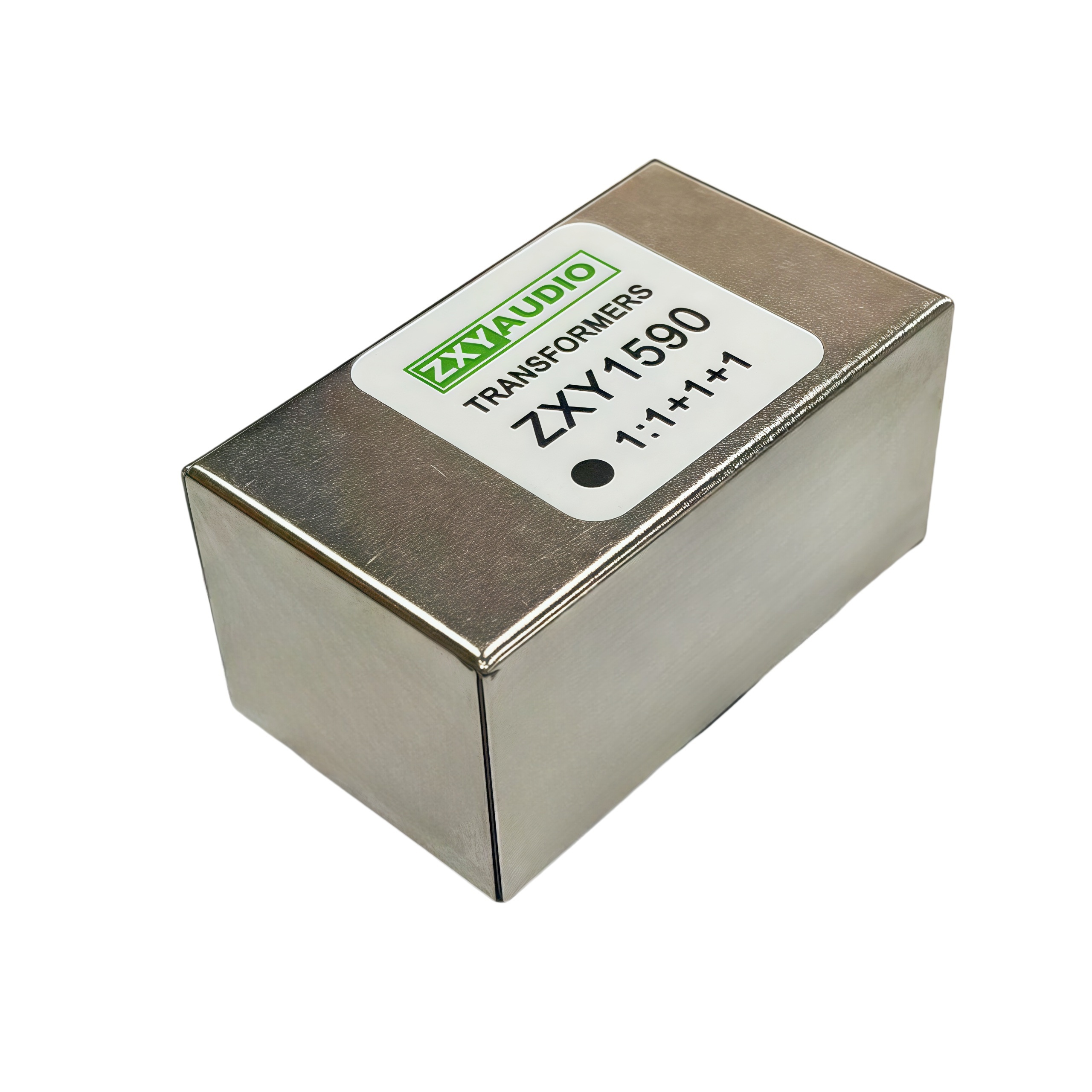

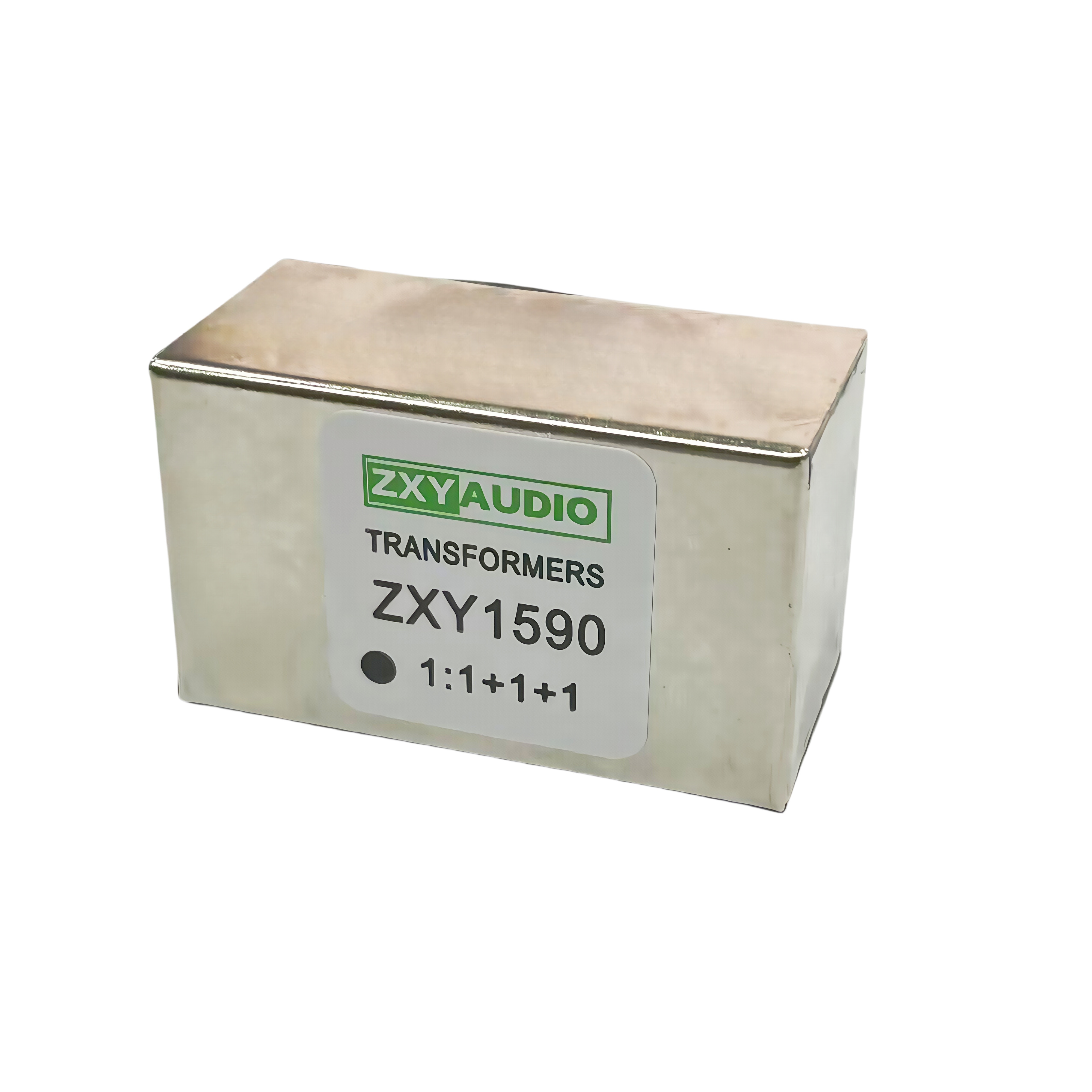

Engineered for Audio Excellence ZXY1590 1+1:1+1 Permalloy Audio Transformer

Brand Name : ZXY

Model Number : ZXY1590

Certification : RoHS、ISO9001、CE

Place of Origin : China,Shenzhen City.

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Delivery Time : Stock Or 3 weeks

Packaging Details : Carton

Keywords : ZXY1590 1+1:1+1 Permalloy Audio Transformer

Proportion : 1+1:1+1

Usage : Audio

Wire material : Copper

Strong point : Reliable and Durable Construction

Item Weight : 130G

Contact Now

Engineered for Audio Excellence ZXY1590 1+1:1+1 Permalloy Audio Transformer

1.Product Description

ZXY1590 1+1:1+1 Permalloy Audio Transformer is a device designed specifically for high-quality audio transmission. It uses Permalloy material as the iron core, and with its high magnetic permeability and low coercivity, it can efficiently transmit magnetic flux, significantly reduce distortion and loss during signal transmission, and achieve high fidelity audio effects. The 1+1:1+1 turns ratio design ensures stable conversion of audio signals between input and output, while also possessing excellent signal isolation capabilities, effectively eliminating electromagnetic interference and ground loop noise, providing a pure transmission environment for audio signals. Paired with precise winding technology and compact structural design, this transformer not only has stable and reliable performance, but is also suitable for various professional audio equipment, high-end audio systems, and broadcasting and film production scenes, bringing users a clear, delicate, and layered auditory experience.

2.Performance Characteristics

Performance Features	Description
High - Permeability Permalloy Core	The ZXY1590 utilizes permalloy, an iron - nickel alloy renowned for its high magnetic permeability. This core material enables efficient magnetic flux transfer, reducing hysteresis and eddy - current losses. As a result, it ensures low - distortion audio signal transmission, delivering high - fidelity sound reproduction across the audible frequency range.
1+1:1+1 Turns Ratio Design	With a 1+1:1+1 turns ratio, the transformer provides stable voltage transformation, maintaining consistent signal levels between input and output. This ratio also offers excellent signal isolation, effectively blocking electromagnetic interference and ground - loop noise, thus safeguarding the purity of audio signals.
Precision Winding Technology	Employing advanced winding techniques, the ZXY1590 features tightly - wound coils with precise wire gauges. This precision minimizes winding resistance and leakage inductance, enhancing the transformer's overall efficiency and signal - handling capabilities. It also contributes to the transformer's compact size without sacrificing performance.
Broad Frequency Response	The transformer is engineered to maintain stable performance across the full audio frequency spectrum (20Hz - 20kHz). Whether dealing with deep bass or high - pitched treble, it ensures consistent signal amplification and transmission, enabling rich, detailed sound reproduction.
Electromagnetic Compatibility (EMC)	Designed with robust electromagnetic shielding, the ZXY1590 effectively resists external electromagnetic interference. It also minimizes magnetic flux leakage, reducing the potential for interference with nearby electronic components. This makes it suitable for use in complex audio systems with multiple devices.
Reliable and Durable Construction	Built with high - quality materials and a sturdy casing, the ZXY1590 offers long - term reliability. Its construction withstands mechanical vibrations and temperature fluctuations, ensuring stable operation in various environments, from professional recording studios to home audio setups.

Engineered for Audio Excellence ZXY1590 1+1:1+1 Permalloy Audio Transformer

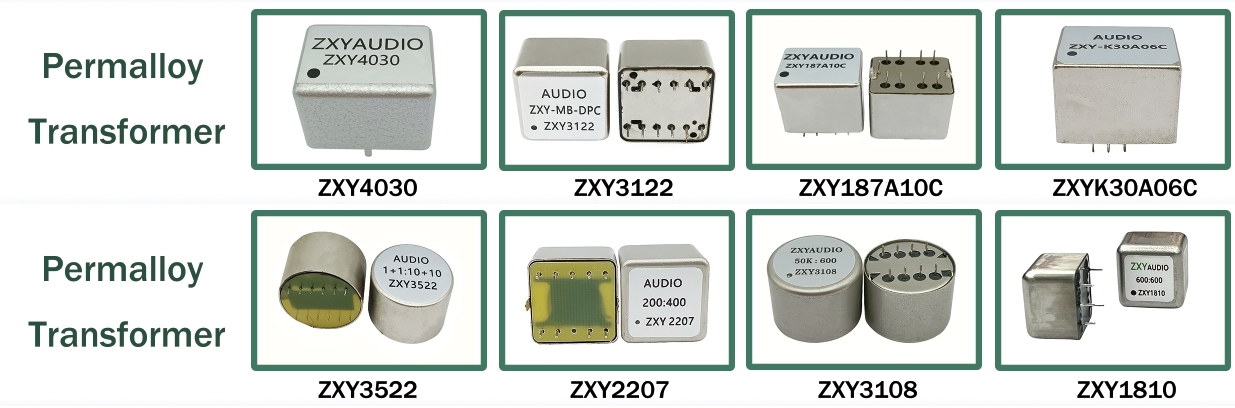

3.Other Recommended Produtcs
