High Voltage EE42 HF Transformer With Wire and Hard Pins 5+5
1.Product Description
| Operating Frequency |
20kHz and 500kHz |
| Output power |
100W to 700W |
| Operating temperature |
-40℃ to +125℃ |
| Wire design |

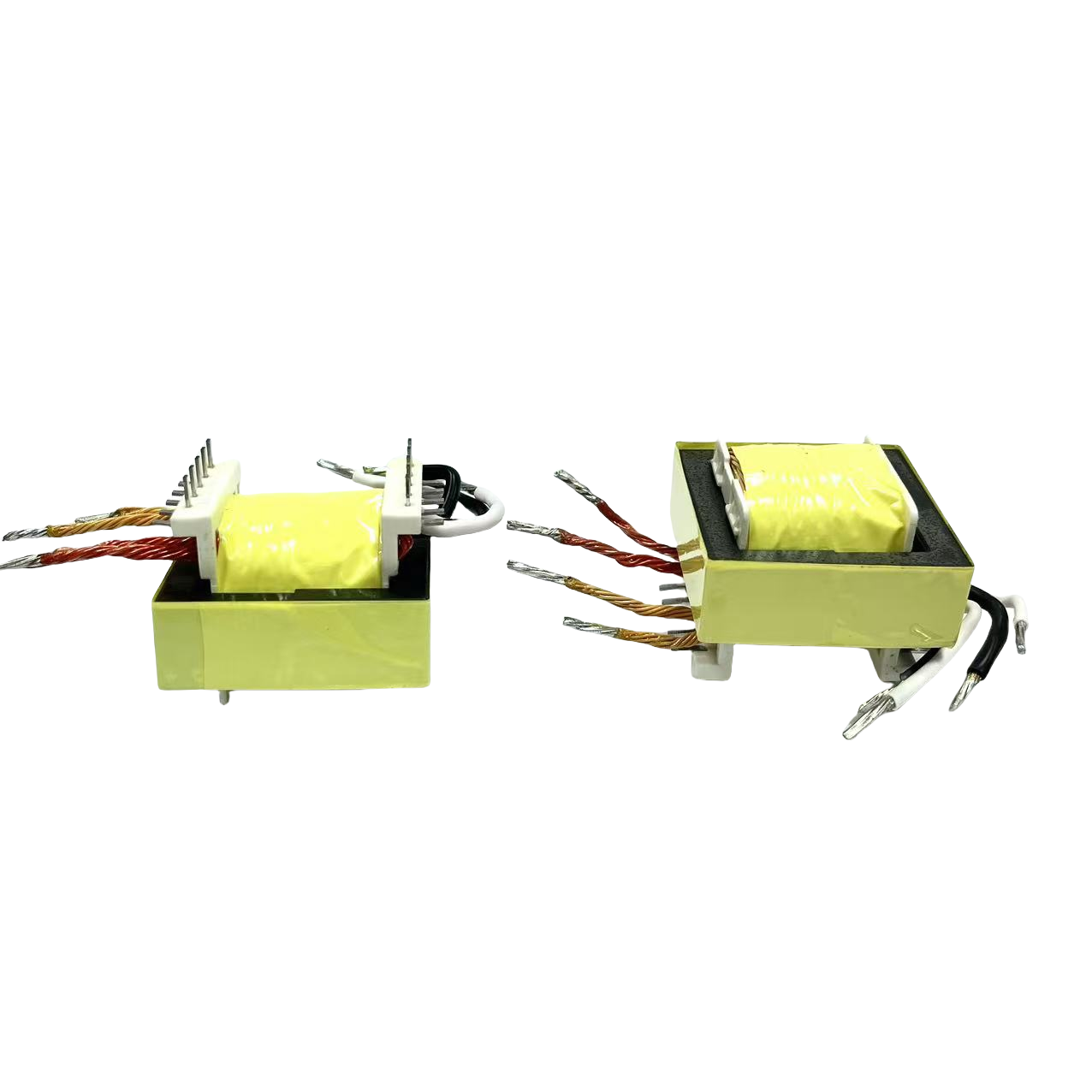

The transformer's coil leads are banded, making it easier and more flexible to install the transformer and to adapt it to different assembly requirements. |
| Hard foot construction |

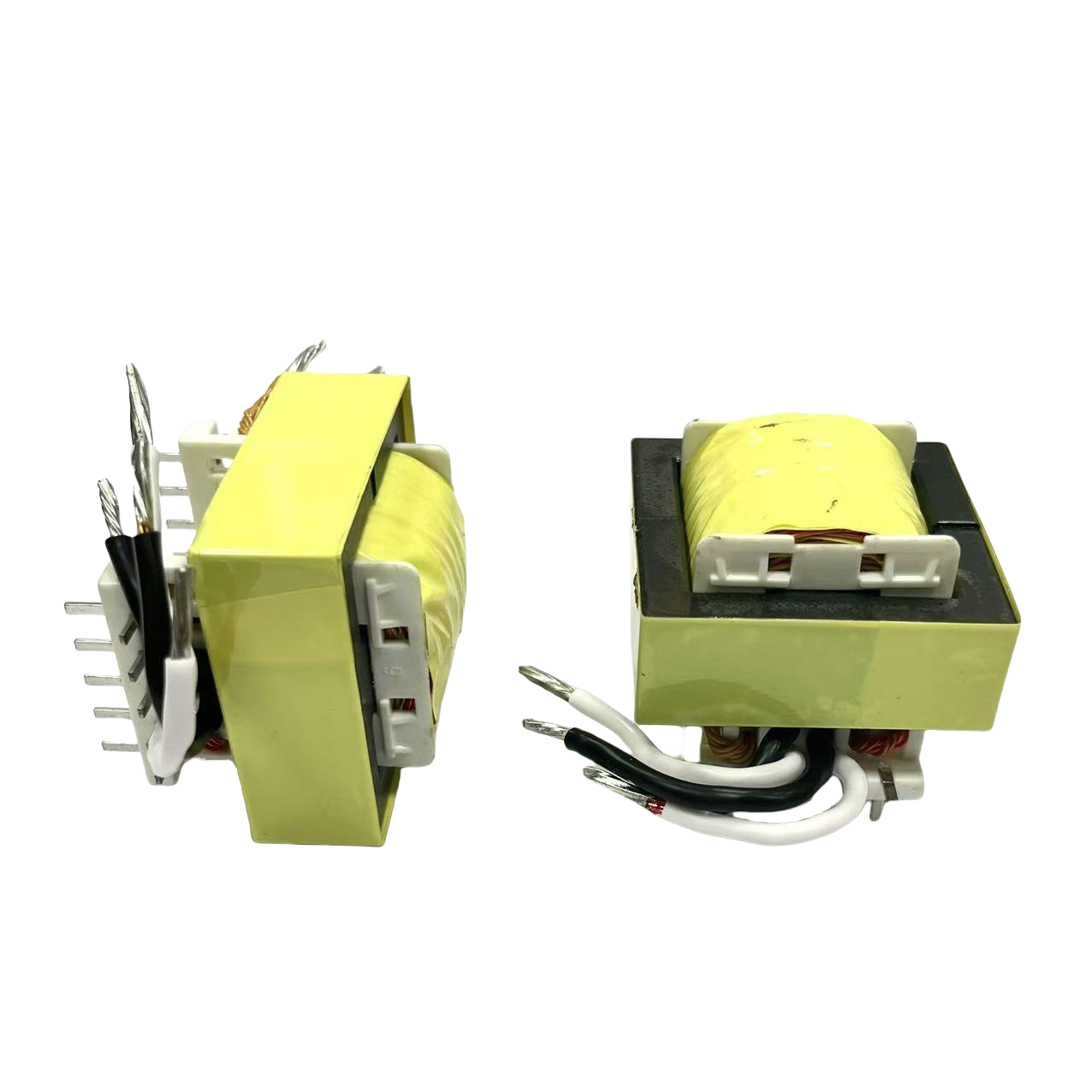

The hard foot is designed as a fixing foot for the transformer, which can stabilize the transformer firmly on the circuit board, facilitate mechanical fixing and soldering, and enhance the structural stability. |
2.Main Characteristics
Main Characteristics:
1. Core material: EE42 HF Transformer usually adopts PC40, PC44 and other advanced materials as the core, which have the characteristics of small magnetic loss and wide working frequency range (up to 20~500kHz).
2. Skeleton structure: the center column of the transformer skeleton is square, this design may make the coupling between the windings and the core a little poor, resulting in low output efficiency, but the cost is relatively low, has certain cost advantages.
3. Scope of application: suitable for flyback topology, mainly used for small and medium power output.
4. Design flexibility: EE42 HF Transformer can be used not only for designing transformers, but also for making inductors.
5. Safety performance: meet the safety requirements to ensure the safety of the use process.
