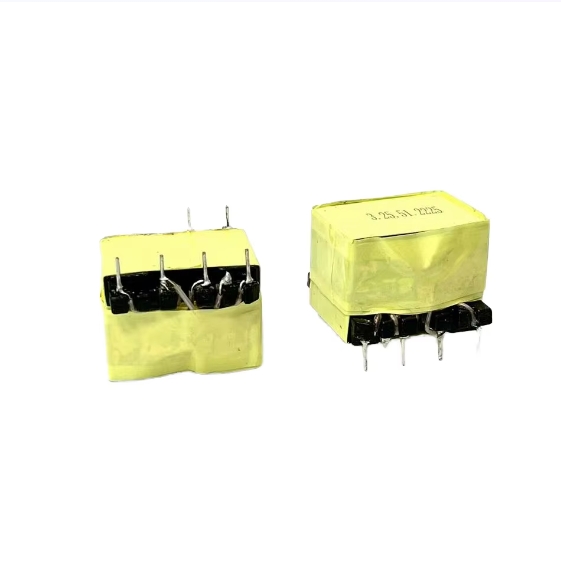

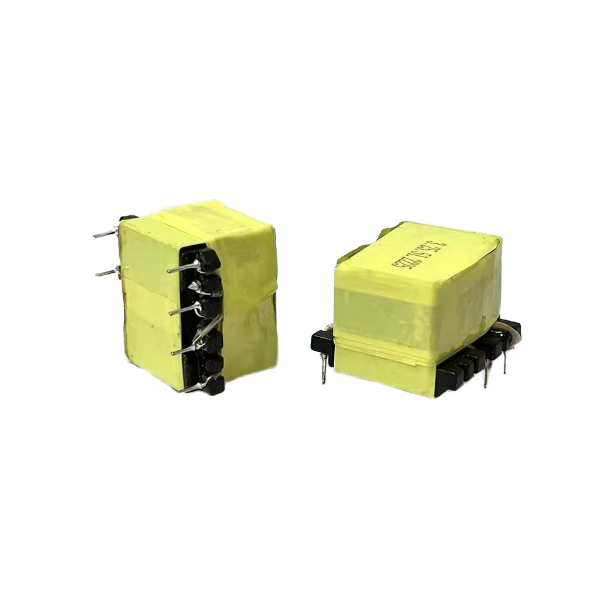

PQ Core Horizontal High Power High Frequency Transformer PQ2620 4+2 Pins
1.Product Description
PQ2620 high-frequency transformers are widely used in electronic equipment because of their compact structure, high power, moderate price and high reliability.
2.Features
| Operating frequency | 20kHz to 500kHz |
| Output power | 10 to 1000W |
| Operating temperature | -40℃ to +180℃ |
| Storage temperature | -25℃ to +85℃ |
| Storage humidity | 30% to 95% |
| Weight | 0.042KG |
3.Product Advantages
1.Compact structure: rational design, compact size, occupies less space.
2.High power: able to meet the needs of high-power applications, improve work efficiency.
3.Moderate price: relative to other high-frequency transformers, its price is more reasonable, has a high cost-effective.
4.High reliability: using high quality materials and advanced technology manufacturing, with high reliability and stability.
4.Other Product Recommendations
| Product Name | TYPE | Detailed Type |
| High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 |
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 |
| ETD | ETD29, ETD35, ETD40, ETD49 |
| EF | EF16, EF20, EF25 |
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 |
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 |
| EP | EP7, EP10, EP13 |
| EPC | EPC11.5, EPC13, EPC19, EPC25 |
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, |
| POT | POT3016, POT3930 |
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 |
| RM | RM6, RM8, RM10, RM12, RM14 |
5.Company Profile
6.FAQ
Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.
Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.
Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
